A4 A3 Customized Size Card Lamination Woolen Felt Cushion Pad YRP-1 For Plastic Card Lamination
felt cushion pad, lamination pad, lamination rubber pad, card laminator cushion pad, plastic card laminating pad, card production material
1. Introduction of A4 A3 Customized Size Card Lamination Woolen Felt Cushion Pad YRP-1 For Plastic Card Lamination
Woolen Felt Cushion Pad is designed for the lamination process for various plastic cards including bank card, credit card, and royalty card. It works with lamination steel plate in the plastic card lamination process.
The structure of white silicon cushion pads is heatproof woolen felt layers on the surfaces with black silicon rubber in the middle.
2. Features of A4 A3 Customized Size Card Lamination Woolen Felt Cushion Pad YRP-1 For Plastic Card Lamination
1). It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination.
2). It can transfer heat quickly and evenly, which can improve production efficiency and energy conservation.
3). It has good performance of high temperature resistance and excellent elastic resilience.
| Heatproof performance: | 200℃ |
| Tensile strength | 80 N/mm |
| Adhesion | 60 N/mm |
| Hardness SHORE A | 55±5 |
| Thickness | 3mm |
| Length and width: | A4, A3 or custom-made size (size tolerance: ±1mm) |
3. Technical Parameter of A4 A3 Customized Size Card Lamination Woolen Felt Cushion Pad YRP-1 For Plastic Card Lamination
1). Heatproof performance: 200℃
2). Tensile strength: 80 N/mm
3). Adhesion: 60 N/mm
4). Hardness SHORE A: 55±5
5). Thickness: 3mm
6). Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)
4. Application of A4 A3 Customized Size Card Lamination Woolen Felt Cushion Pad YRP-1 For Plastic Card Lamination
Woolen felt cushion pad is also known as felt cushion pad, lamination pad, rubber pad, card laminator’s cushion pad, felt rubber pad or plastic card lamination pad.
Facing material:High-temperature endurable felt
Middle material:Black silica gel
Rigidity:50±5
Tensile strength(N/mm):60
Adhesion N/mm:4.5
Heat-resistant t (℃):200
Colour:White
Laminating pads are suitable for manufacturing kinds of ISO baning cards, cards and smart cards.Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process, as the professional card consumables, they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform. Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface, greatly improved the qualification rate of products, and with good cushioning properties, they can avoid the scratches linked to the hard touching between the heating plate and the trays, benefited to the long using life of above both.
Product Tags:
|
|

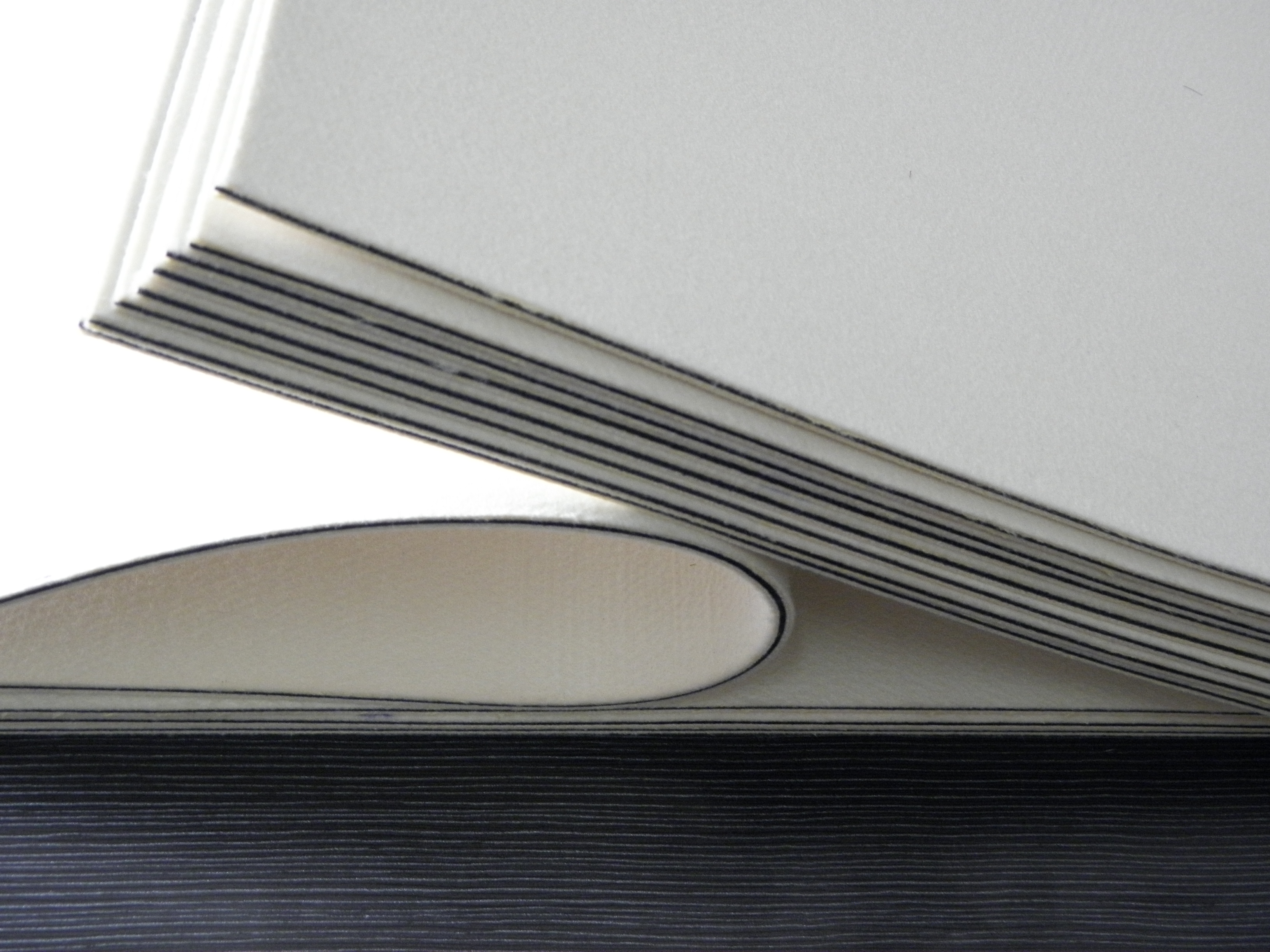

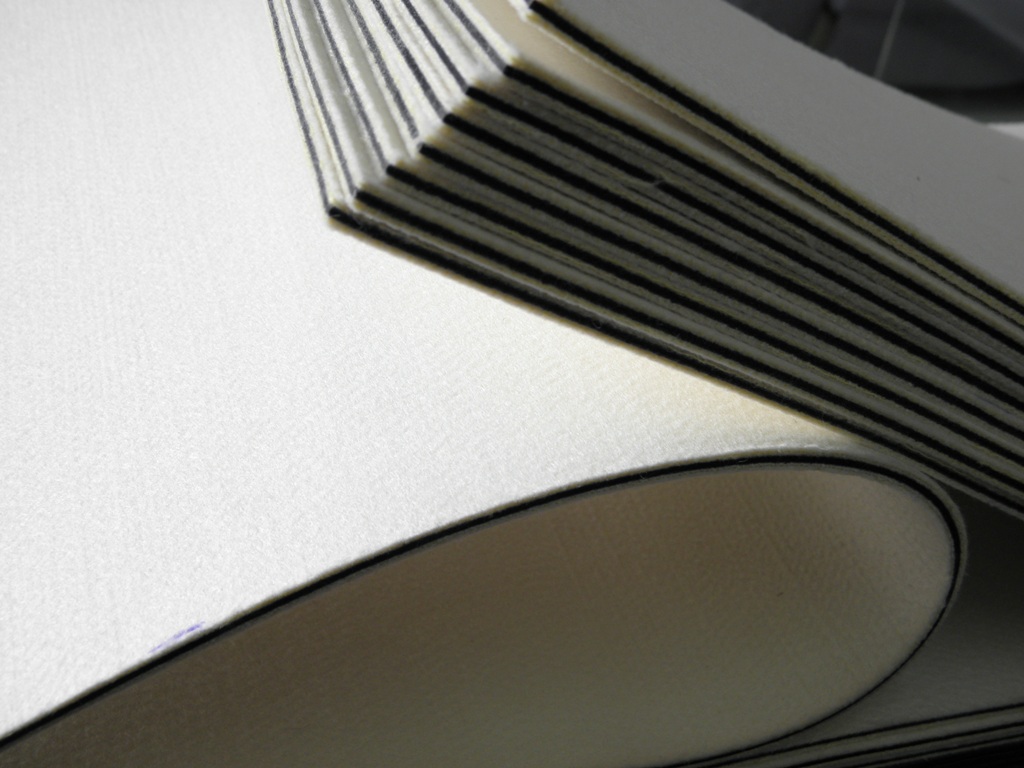

A4 A3 Customized Size Card Lamination Woolen Felt Cushion Pad For Plastic Card Lamination Images
|
